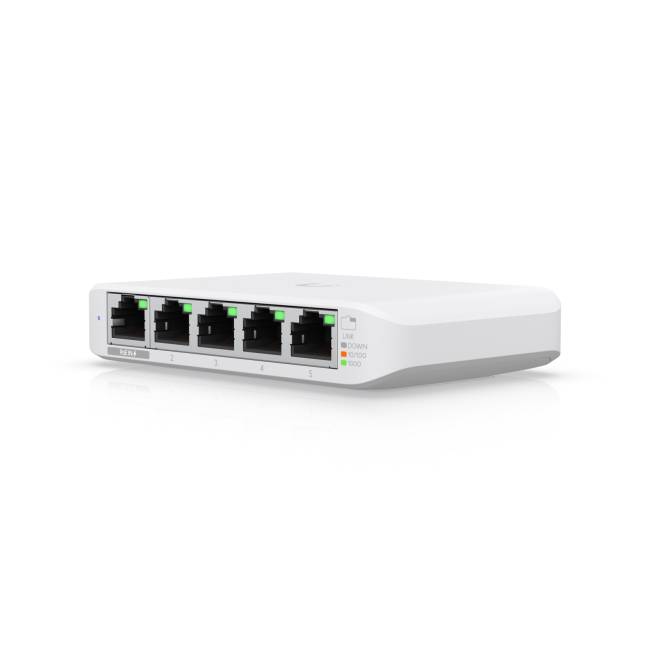

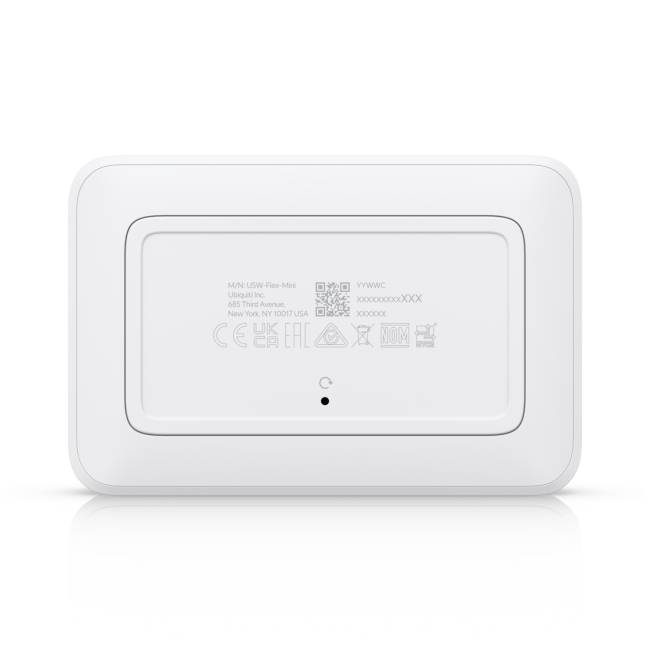

Ubiquiti UniFi Switch Flex Mini PoE Switch White (USW-Flex-Mini)

Ubiquiti UniFi Switch Flex Mini PoE Switch White (USW-Flex-Mini)

Sub Image 1Sub Image 2Sub Image 3Sub Image 4Sub Image 5
  • ✔ Free First Class Delivery
  • ✔ Quality Guaranteed
  • ✔ UK Mainland Warehouse
  • ✔ Pricematch Promise

Only £36.67inc VAT

Ex VAT: £30.56



-+
Add-on Savings Here
Out Of Stock
Email me when this is available

Seen this item cheaper elsewhere?
Let us know and we will attempt to match
or beat any price.


Info & Specs ▾Q & A (0) ▾Reviews (0) ▾

Product Description:

The Ubiquiti UniFi Switch Flex Mini (USW-Flex-Mini) is a compact and smart managed 5-port Gigabit Ethernet switch designed to build and expand networks with ease. This versatile switch can be powered either by 802.3af/at PoE or a 5V, 1A USB-C power adapter, offering flexible deployment options in various settings.

The USW-Flex-Mini provides five 1 GbE RJ45 ports, delivering fast Gigabit links to your devices. It boasts a switching capacity of 10 Gbps and a total non-blocking throughput of 5 Gbps, ensuring efficient data forwarding. Despite its small form factor (107 x 70 x 21 mm), it supports a robust set of Layer 2 features, including Flow Control, Port Mirroring, and Jumbo Frames.

The switch is managed with the UniFi Network Controller, providing a single control plane for intuitive configuration, control, and monitoring, including remote firmware upgrades and user/guest management. The device is housed in a durable polycarbonate enclosure and offers enhanced ESD/EMP protection, making it a reliable addition to any network.


Key Features

  • 5-Port Gigabit Ethernet: Features five 1 GbE RJ45 ports, providing high-speed Gigabit links for your wired devices.
  • Flexible Powering Options: Can be powered by either 802.3af/at PoE on port 1 or the included 5V, 1A USB Type-C adapter, offering exceptional deployment flexibility.
  • Managed with UniFi Network Controller: Works seamlessly with the UniFi Network Controller (Version 5.12.5 and later) for a single, centralized control plane with intuitive configuration, remote firmware upgrades, and robust monitoring.
  • High Performance: Delivers a switching capacity of 10 Gbps, a total non-blocking throughput of 5 Gbps, and a forwarding rate of 7 Mpps.
  • Compact & Discreet Design: Its compact size and lightweight design (150 g) allow for discreet placement on a desktop or mounted on a surface.
  • Layer 2 Feature Set: Supports key Layer 2 features, including Flow Control, Port Mirroring, Jumbo Frames, Port Isolation, and Storm Control.
  • Enhanced Protection: Features robust ESD/EMP protection (Air: ? 16kV, contact: ? 12kV) to safeguard against electrical surges.
  • NDAA Compliant: Adheres to NDAA compliance standards.

Product Specifications:

NameValue
Manufacturer Part NumberUSW-FLEX-MINI
ManufacturerUbiquiti
Product TypeNetwork Switch
Ports 5-Port Gigabit Ethernet 1 GbE RJ45
Powering OptionsEither 802.3af/at PoE on port 1 or the included 5V, 1A USB Type-C adapter
Switching CapacityOf 10 Gbps, a total non-blocking throughput of 5 Gbps, and a forwarding rate of 7 Mpps.
Product Barcode0817882029698
Ethernet Technology(1G/100M/10M)
Form FactorMini Server
InterfaceEthernet (RJ-45)
Item Height21mm
Item Length107mm
Item Width70mm
Maximum Data Transfer RateForwarding Rate 7 Mpps
Network ConnectivityWired-Ethernet (RJ-45)
Number Of Lan Ports5
Product LineUSW-FLEX-MINI-EU
