Only £205.97inc VAT
Ex VAT: £171.64
Refresh Cartridges-+
Let us know and we will attempt to match
or beat any price.
Info & Specs ▾Q & A (0) ▾Reviews (0) ▾
Product Description:

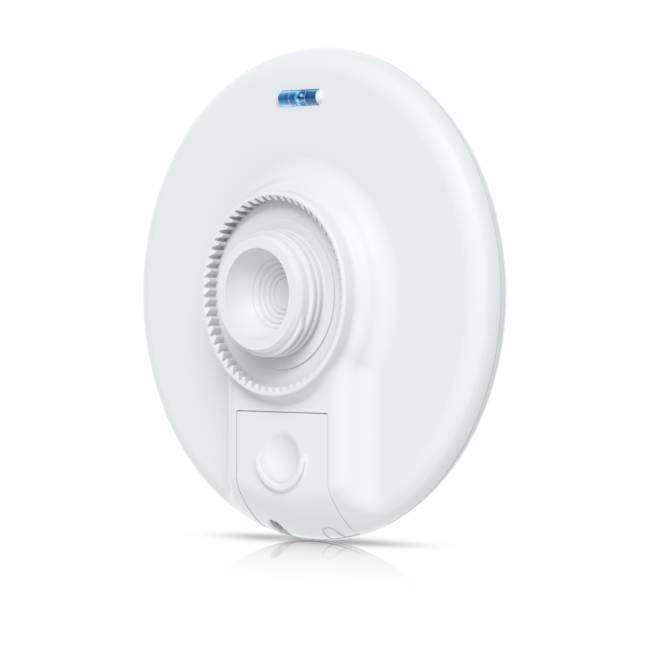

The Ubiquiti UniFi Device Bridge Pro (UDB-Pro) is a powerful and rugged wireless network bridge designed for professional networking solutions, enabling stable, reliable, and high-performance point-to-point connections between network segments. Ideal for outdoor use, this device is engineered to provide wide transmission range over longer distances, even under demanding conditions.
Operating on WiFi 5 (802.11ac) in the 5 GHz band, the UDB-Pro utilizes 2x2 MIMO technology to achieve a maximum data rate of 867 Mbps (BW80) and a high 19 dBi antenna gain, supporting a coverage area of 5 km (3.1 mi). Its robust construction features UV-resistant polycarbonate and stainless steel, along with IPX6 weatherproofing, allowing it to withstand extreme ambient operating temperatures from -40 to 60?C. The UDB-Pro includes two GbE RJ45 ports (one PoE in, one Passive PoE output requiring PoE+ input for output) and is easily installed with included pole mounting hardware. Managed seamlessly within the UniFi ecosystem, this NDAA compliant bridge offers an intuitive setup for expanding network infrastructure between buildings or outdoor areas.
Key Features
- High-Performance Wireless Bridge: Designed for professional point-to-point connections, providing stable and fast wireless links between network segments.
- WiFi 5 (802.11ac) with 2x2 MIMO: Operates on the 5 GHz band with 2x2 MIMO technology, achieving a maximum data rate of 867 Mbps (BW80).
- Extended Coverage: Features 19 dBi antenna gain and supports a coverage area of 5 km (3.1 mi) for reliable long-distance connections.
- Rugged Outdoor Design: Built with UV-resistant polycarbonate and stainless steel and features IPX6 weatherproofing, capable of operating in extreme ambient temperatures from -40 to 60?C (-40 to 140?F).

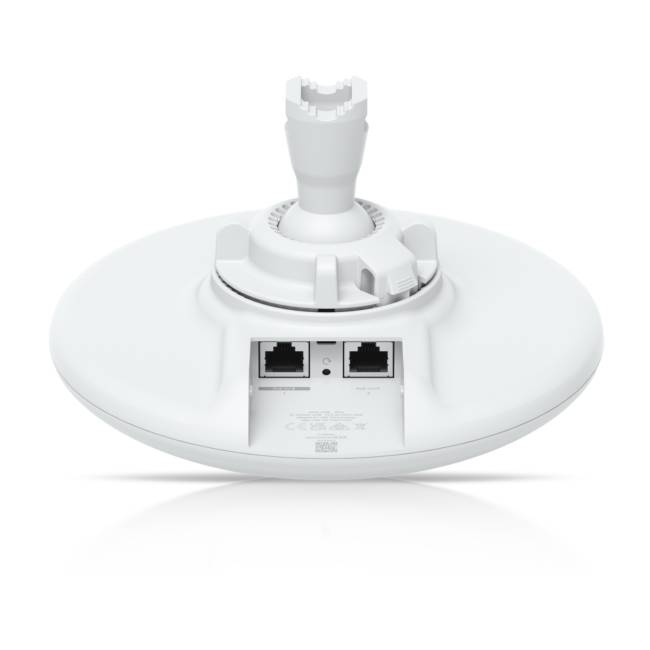

- Flexible Ethernet Connectivity: Includes (2) GbE RJ45 ports; one for PoE input and another for Passive PoE output (requires PoE+ switch for input to enable output).
- Versatile Mounting: Supports wall and pole mounting with included pole mounting accessories, facilitating easy installation in various outdoor environments.
- Seamless UniFi Integration: Offers easy installation and configuration through the intuitive UniFi management system for optimal network setup and integration with existing UniFi networks.
- NDAA Compliant: Adheres to NDAA compliance standards, ensuring it meets stringent security and supply chain requirements.
- Reliable Powering: Powered via PoE, with a 48V, 0.32A PoE adapter included.
- High Wind Load Resistance: Capable of withstanding 69 N at 200 km/h (15.5 lbf at 125 mph) wind loading.
| Name | Value |
|---|---|
| Manufacturer Part Number | UDB-Pro |
| Manufacturer | Ubiquiti |
| Product Type | Access Point |
| WiFi 5 (802.11ac) with 2x2 MIMO | Operates on the 5 GHz band with 2x2 MIMO technology, achieving a maximum data rate of 867 Mbps (BW80). |
| Extended Coverage | 19 dBi antenna gain and supports a coverage area of 5 km (3.1 mi) |
| Product Barcode | 0810084698051 |
| Connectivity | Wired-Ethernet (RJ-45) |
| Item Length | 189.5mm |
| Item Width | 64.3mm |
| Number Of Lan Ports | 2 |
