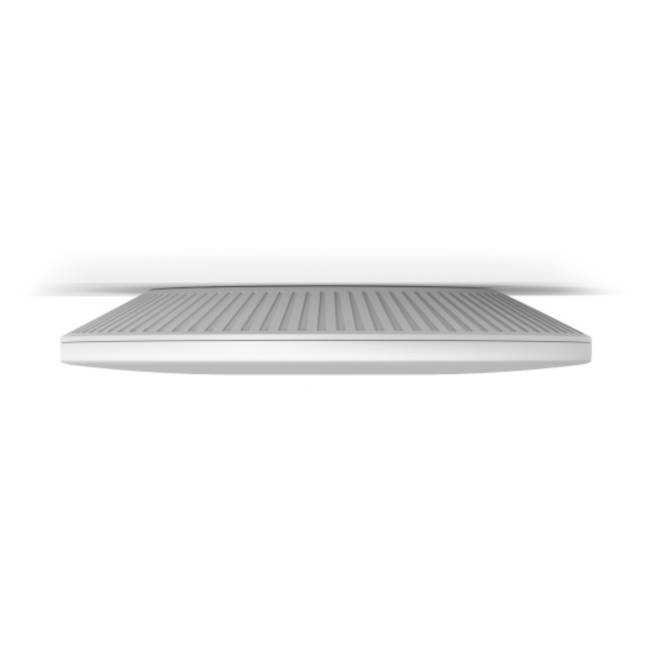

TP-Link Omada AX6000 V1 Wi-Fi 6 Ceiling or Wall-mounted Access Point - EAP683 LR

TP-Link Omada AX6000 V1 Wi-Fi 6 Ceiling or Wall-mounted Access Point - EAP683 LR

Sub Image 1Sub Image 2Sub Image 3
  • ✔ Free First Class Delivery
  • ✔ Quality Guaranteed
  • ✔ UK Mainland Warehouse
  • ✔ Pricematch Promise

Only £189.36inc VAT

Ex VAT: £157.80



-+
Add-on Savings Here
Out Of Stock
Email me when this is available

Seen this item cheaper elsewhere?
Let us know and we will attempt to match
or beat any price.


Info & Specs ▾Q & A (0) ▾Reviews (0) ▾

Product Description:

The TP-Link Omada EAP683 LR V1 is a high-performance Wi-Fi 6 ceiling, or wall-mounted access point designed for demanding, high-density environments such as schools, hotels, offices, and public venues. With AX6000-class throughput, it delivers up to 5952 Mbps across both 2.4 GHz and 5 GHz bands, making it ideal for environments with a large number of connected devices-up to 512 concurrent clients.

Key features include MU-MIMO, Omada Mesh, beamforming, Airtime Fairness, and band steering, which ensure efficient, high-speed wireless distribution. Advanced security protocols like WPA3, ACL support, and MAC address filtering help safeguard the network.

The EAP683 LR V1 supports cloud management through TP-Link`s Omada SDN platform, offering features such as Zero-Touch Provisioning, remote monitoring, and seamless roaming. With PoE+ support, it allows flexible, centralized power and data via a single Ethernet cable.


Specifications

Networking & Performance
  • Wi-Fi Standard: Wi-Fi 6 (802.11ax)
  • Bands: 2.4 GHz + 5 GHz dual-band
  • Total Throughput: Up to 5952 Mbps
  • 2.4 GHz: 1148 Mbps
  • 5 GHz: 4804 Mbps
  • Channel Bandwidth: 160 MHz
  • Concurrent Clients: Up to 512
  • SSIDs: 16 total (8 per radio)
Technology
  • MU-MIMO
  • Beamforming
  • OFDMA
  • Airtime Fairness
  • Band Steering
  • Load Balancing
  • Seamless Roaming
  • Omada Mesh
  • Wireless Scheduler
Security
  • Encryption:
    • WPA3-Personal
    • WPA3-Enterprise
    • WPA2-Personal
    • WPA2-Enterprise
    • WPA-Personal
  • Other Security Features:
    • ACL (Access Control List)
    • MAC Address Filtering
    • Client Isolation
    • VLAN Support
Management
  • Management Type: Cloud-managed (Omada SDN) or local
  • Remote Management: HTTP, HTTPS, SSH, SNMP (v1/2c/3), Syslog
  • Zero-Touch Provisioning (ZTP): Supported
  • LED Indicator: Yes
Hardware & Interfaces
  • LAN Port: 1 x 2.5GbE RJ-45 (PoE+)
  • Antenna: Internal, Omni-directional

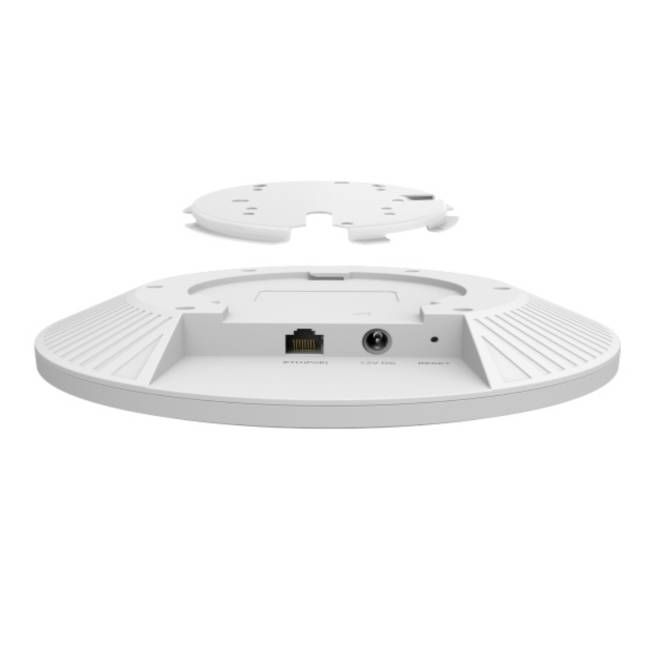

  • Mounting: Wall / Ceiling (mounting kit included)
Power
  • PoE Support: Yes (PoE+, IEEE 802.3at)
  • Power Adapter: External (not included)
Dimensions & Weight
  • Size: 22 x 22 x 3.25cm
  • Weight: 694.6g
Environmental
  • Operating Temp: 0?C to 40?C
  • Humidity: 10% - 90% RH (non-condensing)
System Requirements
  • Compatible with: Microsoft Windows XP / Vista / 7 / 8 / 10 / 11, Linux
Certifications & Compliance
  • Wi-Fi Certified 6
  • IEEE Standards: 802.11a/b/g/n/ac/ax, 802.1x, 802.3at
  • Certifications: FCC, RoHS

Product Specifications:

NameValue
Manufacturer Part NumberEAP683 LR
ManufacturerTP-Link
Product TypeAccess Point
Product Barcode4895252506471
Maximum Wireless Data Rate5952 Mbps
Number Of Lan Ports1
