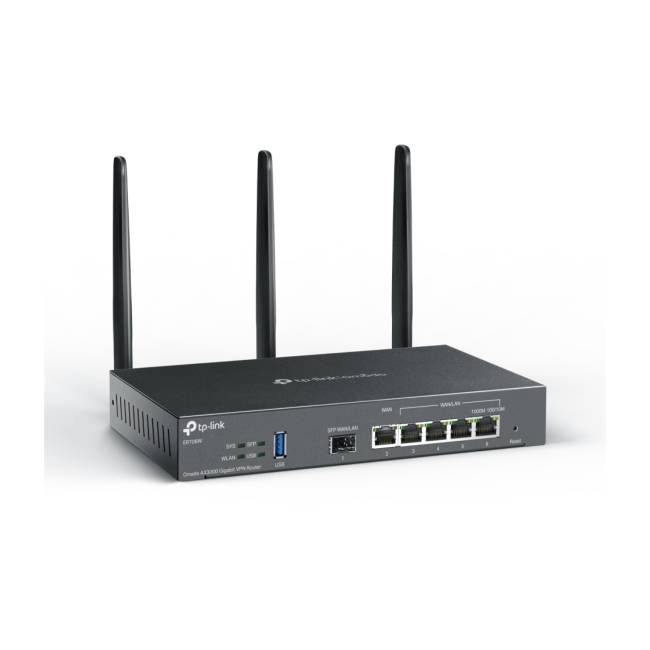

TP-Link Omada AX3000 Gigabit VPN Router TP-LINKER706W

Flexible Wi-Fi Coverage through Business Wired Connectivity

Omada AX3000 Gigabit VPN Router

Ubiquitous Connectivity with WiFi 6

The ER706W is an enterprise-grade dual-band wireless router designed for high-performance remote administration. Featuring the latest WiFi 6 technologies, including HE160, OFDMA, and 1024 QAM, it supports speeds up to 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, delivering a total transmission rate of up to 3 Gbps. Enjoy a seamless, buffer-free network experience.

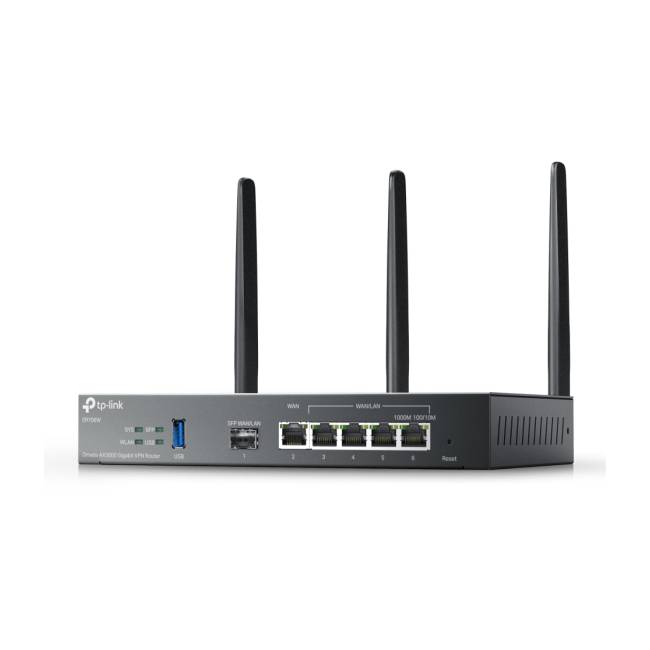

Multiple WAN Ports and USB 3.0 for Mobile Broadband

The router supports up to five WAN ports (SFP and RJ45) to accommodate various internet access needs. Multi-WAN Load Balancing optimizes data distribution across WAN ports based on bandwidth, enhancing multi-line broadband utilization. The USB 3.0 port offers high-speed mobile connectivity, supporting 4G/3G modem connections for WAN backup.

Professional Hardware for Superior Wireless Performance

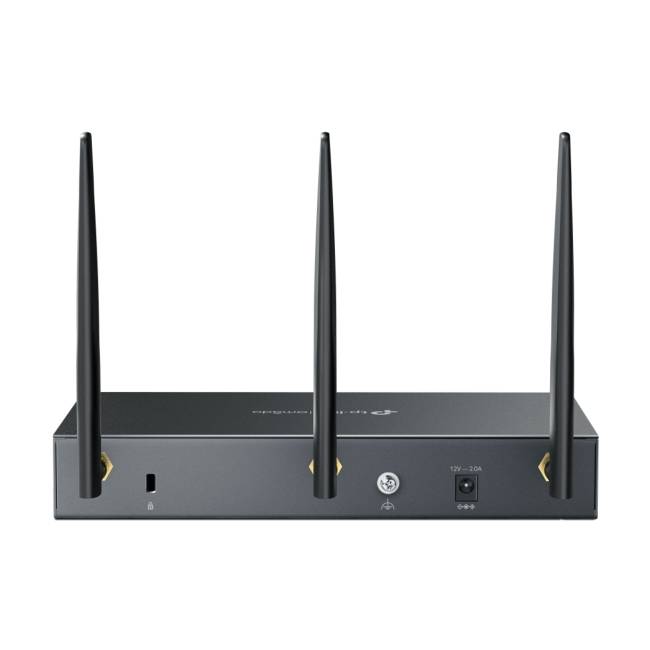

The ER706W`s three external, detachable antennas provide excellent wireless coverage, reliable signal strength, and enhanced sensitivity. The steel construction ensures efficient heat dissipation and reliable operation.

Seamless Integration with Omada Access Points

The ER706W seamlessly connects with Omada access points supporting mesh technology, making it ideal for large-scale environments. Intelligent self-organization optimizes connections, and self-healing ensures continuous online connectivity even if an access point fails.

High-Security VPN

The ER706W supports multiple VPN protocols, including IPSec, SSL, Wireguard, PPTP, and L2TP, offering versatile options for secure connections. One-click auto IPSec VPN simplifies setup and network management, while a built-in hardware engine boosts VPN performance.

Abundant Security Features

Powerful Firewall: Advanced policies to protect network and data.

VLAN Support: Create virtual segments for enhanced security and simplified management.

DoS Defense: Automatic detection and blocking of DoS attacks.

IP/MAC/URL Filtering: Prevent viruses and attacks.

IP-MAC Binding: Protects against ARP attacks and spoofing.

One-Click ALG Activation: Simplifies application-specific settings for FTP, H323, SIP, IPsec, and PPTP.

Omada SDN ??? The Smarter Cloud Solution for Business Networking

As part of the Omada Software Defined Networking (SDN) solution, the ER706W allows for remote and centralized management, integrating seamlessly into the Omada SDN platform for easy network control anytime, anywhere.

Easy Management with the Omada App

Configure the ER706W using the Omada app in standalone or controller modes. The app offers quick setup and multi-function configuration, including network status monitoring and client management from your smartphone or tablet.

Specifications

Ethernet LAN Features

Ethernet WAN: Yes

Interface Type: Gigabit Ethernet

LAN Data Rates: 10/100/1000 Mbit/s

Cabling Technology: 10/100/1000Base-T(X)

Mobile Network

SIM Card Slot: No

3G/4G USB Modem Compatibility: Yes

Network

Routing Protocols: OSPF, RIP

NAT: Yes

Guest Access: Yes

VPN Tunnels Quantity: 50

Port Forwarding: Yes

Port Triggering: Yes

Dynamic DNS (DDNS): Yes

Protocols

DMZ Support: Yes

UPnP: Yes

DHCP Server: Yes

Management Features

UPnP: Yes

Web-Based Management: Yes

Reset Button: Yes

MU-MIMO Technology: Yes

MIMO: Yes

Security

VPN Tunnels Quantity: 50

URL Filtering: Yes

System Event Log: Yes

Security Algorithms: WPA, WPA2, WPA3-Enterprise

Filtering: Yes

Schedule Access: Yes

Access Control List (ACL): Yes

Performance

Internal Memory: 512 MB

Flash Memory: 128 MB

Certificates

Certification: CE, FCC, RoHS

WAN Connection

Ethernet WAN: Yes

DSL WAN: No

SIM Card Slot: No

3G/4G USB Modem Compatibility: Yes

Connection Type: SFP

Wireless LAN Features

Max Data Transfer Rate: 3000 Mbit/s

Wi-Fi Band: Dual-band (2.4 GHz / 5 GHz)

Data Transfer Rate (First Band): 574 Mbit/s

Data Transfer Rate (Second Band): 2402 Mbit/s

Ports & Interfaces

USB Port: Yes

Ethernet LAN (RJ-45) Ports: 4

DC-In Jack: Yes

USB 3.2 Gen 1 (Type-A) Ports: 1

Design

Product Type: Desktop/pole router

Wall Mountable: Yes

LED Indicators: System, USB, WAN, WLAN

Product Colour: Black

Packaging Content

Manual: Yes

AC Adapter Included: Yes

Other Features

Internal Memory: 512 MB

Flash Memory: 128 MB

Antenna Design: External

Antennas Quantity: 3

Antenna Gain Level (Max): 4.5 dBi

Power

Power Source Type: DC

Output Voltage: 12 V

Output Current: 2 A

Operational Conditions

Storage Temperature: -40 - 70 ?C

Storage Relative Humidity: 5 - 90%

Operating Temperature: 0 - 40 ?C

Operating Relative Humidity: 10 - 90%

Weight & Dimensions

Width: 226 mm

Height: 35 mm

Depth: 131 mm

Packaging Data

Manual: Yes

AC Adapter Included: Yes
