TP-LINK Omada AC1200 Wireless, Dual Band, Wall Mount GB Access Point - (EAP230-WALL)

TP-LINK Omada AC1200 Wireless, Dual Band, Wall Mount GB Access Point EAP230-WALL

Sub Image 1Sub Image 2
  • ✔ Free First Class Delivery
  • ✔ Quality Guaranteed
  • ✔ UK Mainland Warehouse
  • ✔ Pricematch Promise

Only £79.07inc VAT

Ex VAT: £65.89



-+
Add-on Savings Here
Out Of Stock
Email me when this is available

Seen this item cheaper elsewhere?
Let us know and we will attempt to match
or beat any price.


Info & Specs ▾Q & A (0) ▾Reviews (0) ▾

Product Description:

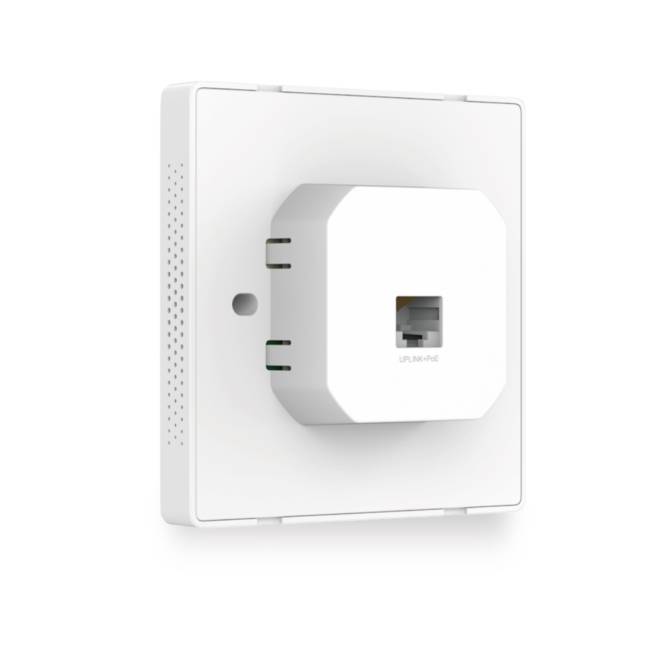

The TP-LINK EAP230-WALL Omada AC1200, is a wall-mounted wireless access point designed for indoor environments, particularly in hotels, offices, and dormitories. It offers dual-band Wi-Fi connectivity with speeds up to 1200 Mbps, ensuring fast and reliable wireless access. The device is compact and can be easily installed on a standard wall outlet, making it a discreet solution for providing network access in each room.

It supports advanced wireless technologies like MU-MIMO, Beamforming, and Band Steering, which enhance network performance and user experience. The EAP230-WALL is powered via PoE, simplifying installation by eliminating the need for a separate power source.

Specifications:

  • Primary Function: Access Point (Wall Mount, Indoor)
  • Bands: Dual Band (2.4GHz and 5GHz)
  • Max Wireless Transfer Rate: 2.4GHz: 300 Mbps, 5GHz: 867 Mbps
  • Max Wired Transfer Rate: 10/100/1000 Mbps (Gigabit Ethernet)
  • Uplink: 1 x 10/100/1000 Mbps Ethernet Port
  • Downlink: 1 x 10/100/1000 Mbps Ethernet Port
  • Wireless Standards: IEEE 802.11n/g/b/ac
  • Antenna(s): 2.4 GHz: 2 x 4 dBi antennas, 5 GHz: 2 x 3.6 dBi antennas
  • Buttons: LED/Wi-Fi Button, RESET
  • Power Supply: 802.3af/802.3at PoE (Power over Ethernet)
  • Power Consumption: 7 W
  • Dimensions: 86.8 x 86.8 x 30.2 mm
  • Weatherproof: No (Designed for indoor use)
  • Wireless Functions:
    • 16 SSIDs (Up to 8 SSIDs per band)
    • Enable/Disable Wireless Radio
    • Automatic Channel Assignment
    • Transmit Power Control (Adjust Transmit Power on dBm)
    • QoS (WMM)
    • Load Balance
    • Rate Limit
    • Reboot Schedule
    • Wireless Schedule
    • Wireless Statistics (based on SSID/AP/Client)
    • MU-MIMO
    • Band Steering
    • Beamforming
  • Wireless Security:
    • Captive Portal Authentication
    • Access Control
    • Wireless MAC Address Filtering
    • Wireless Isolation Between Clients
    • SSID to VLAN Mapping
    • Local LAN port based VLAN
    • Rogue AP Detection
    • 802.1X Support
    • 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
  • Management:
    • Omada App
    • Omada Cloud-Based Controller
    • Omada Hardware & Software Controller
    • Cloud Access
    • Email Alerts
    • LED ON/OFF Control
    • MAC Access Control
    • SNMP v1, v2c
    • Local/Remote Syslog
    • SSH
    • HTTP/HTTPS
    • L3 Management
    • Multi-site Management
    • Management VLAN
  • Environment:
    • Operating Temperature: 0?C40?C (32?F104?F)
    • Storage Temperature: -40?C70?C (-40?F158?F)
    • Operating Humidity: 10%-90% non-condensing
    • Storage Humidity: 5%-90% non-condensing
  • Package Contents:
    • Omada AC1200 Gigabit Wall-Plate Access Point
    • Installation Guide
    • Mounting Screw
  • Package Type: Retail
  • Package Weight: 0.2160 kg

Product Specifications:

NameValue
Manufacturer Part NumberEAP230-WALL
ManufacturerTP-Link
Product TypeWall Mount Access Point
Product Barcode6935364089498
FeaturesDual-Band
Maximum Lan Data Rate1000 Mbps
Maximum Wireless Data Rate867 Mbps
Number Of Lan Ports1
