Product Description:

The TP-LINK EAP235-WALL Omada AC1200, is a wall-mounted wireless access point, designed for high-performance networking in environments like hotels, offices, dormitories, and small businesses. It offers dual-band wireless connectivity, supporting both 2.4 GHz and 5 GHz frequencies for a combined wireless speed of up to 1200 Mbps. The device features MU-MIMO technology, ensuring efficient data transmission to multiple devices simultaneously.

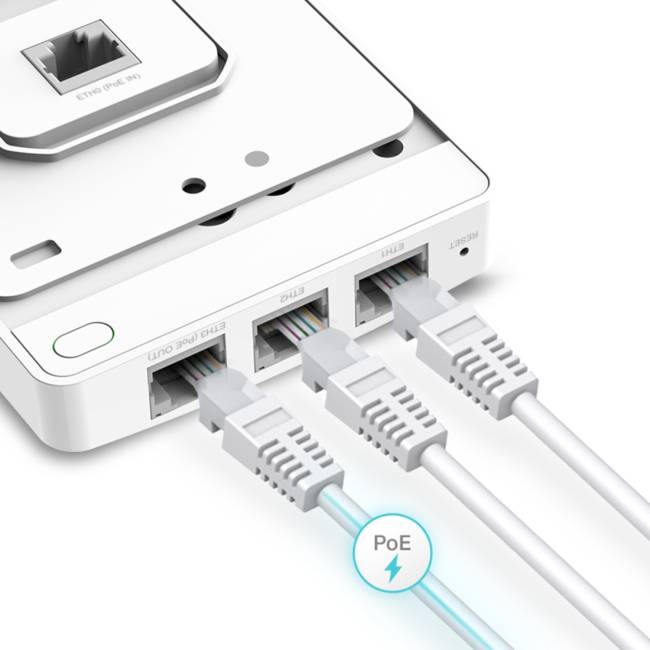

With Power over Ethernet (PoE) support, it simplifies installation by allowing both power and data transmission over a single Ethernet cable. The EAP235-WALL is also equipped with advanced wireless and security functions, making it a versatile and secure choice for a wide range of applications.

Specifications:

  • Wireless Standards: IEEE 802.11a/b/g/n/ac
  • Frequency Bands: 2.4 GHz: Up to 300 Mbps, 5 GHz: Up to 867 Mbps
  • Maximum Wireless Transfer Rate: 1200 Mbps (Combined)
  • Uplink: 1 x 10/100/1000 Mbps Ethernet Port
  • Downlink: 3 x 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT with up to 13W output)
  • Antenna:
    • 2 x Dual-Band Antennas
    • 2.4 GHz: 2 x 4 dBi
    • 5 GHz: 2 x 4 dBi
  • Power Supply: Supports 802.3af/802.3at PoE
  • Power Consumption:
    • 9.8 watts (Standard operation)
    • 24.4 watts (With PoE Out included)
  • Wireless Features:
    • 16 SSIDs (8 SSIDs per band)
    • MU-MIMO
    • Band Steering
    • Beamforming
    • Load Balancing
    • Rate Limiting
    • Wireless Scheduling
    • Transmit Power Control
    • Wireless Statistics (SSID/AP/Client)
  • Security Features:
    • Captive Portal Authentication
    • Access Control
    • Wireless MAC Address Filtering
    • SSID to VLAN Mapping
    • Rogue AP Detection
    • WPA/WPA2-PSK, WPA/WPA2-Enterprise
    • 802.1X Support
  • Management:
    • Omada App
    • Centralized Cloud Management
    • Multi-site Management
    • SNMP v1/v2c
    • SSH, HTTP/HTTPS
    • Remote Syslog
    • LED ON/OFF Control
    • Management VLAN
    • L3 Management
  • Environment:
    • Operating Temperature: 0?C to 40?C (32?F to 104?F)
    • Storage Temperature: -40?C to 70?C (-40?F to 158?F)
    • Operating Humidity: 10% to 90% non-condensing
    • Storage Humidity: 5% to 90% non-condensing
  • Package Contents:
    • Omada AC1200 Wall Plate Access Point
    • Installation Guide
    • Mounting Screw
  • Dimensions: 143 x 86 x 20 mm
  • Package Weight: 0.3220 kg

Product Specifications:

NameValue
Manufacturer Part NumberEAP235-WALL
ManufacturerTP-Link
Product TypeAccess Point
Product Barcode6935364006341
FeaturesDual-Band
Maximum Lan Data Rate1000 Mbps
Maximum Wireless Data Rate867 Mbps
Number Of Lan Ports3
