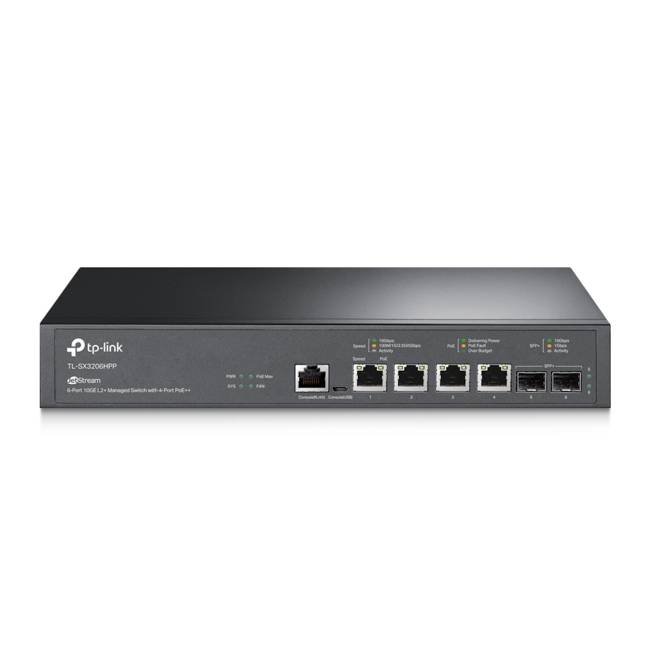

TP-LINK JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++, Rackmountable - (TL-SX3206HPP) TP-LINKSX3206HPP

The TP-LINK (TL-SX3206HPP) JetStream 6-Port 10GE L2+ Managed Switch, is an advanced networking solution designed for businesses and high-performance network environments. This switch offers a combination of 10GE and multi-gigabit RJ45 ports with PoE++ capability, making it ideal for powering high-demand devices such as wireless access points, IP cameras, and VoIP phones. With its rackmountable design and extensive management features, the TL-SX3206HPP provides flexibility, efficiency and ease of use.

Specifications:

• Rackmountable: Yes
• Managed: Yes
• Number of Ports: 6
• Max RJ45 Transfer Rate: 10 Gbps

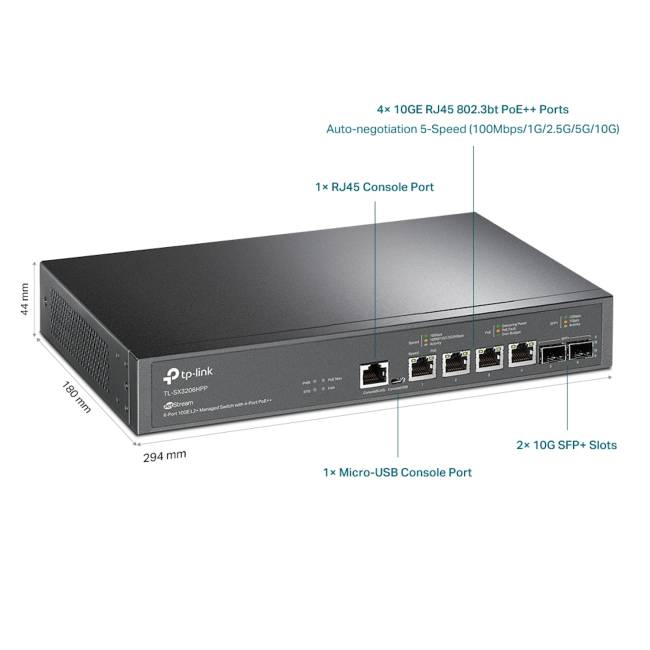

• Interface(s):  4 x 100/1000/2500/5000/10000Mbps RJ45 Ports, 2 x 10G SFP+ Slots, 1 x RJ45 Console Port, 1 x Micro-USB Console Port
• Standard: 802.3bt/at/af compliant
• PoE+ Ports: 4 Ports, up to 60 W per port
• Power Budget: 200 W
• Switching Capacity: 120 Gbps

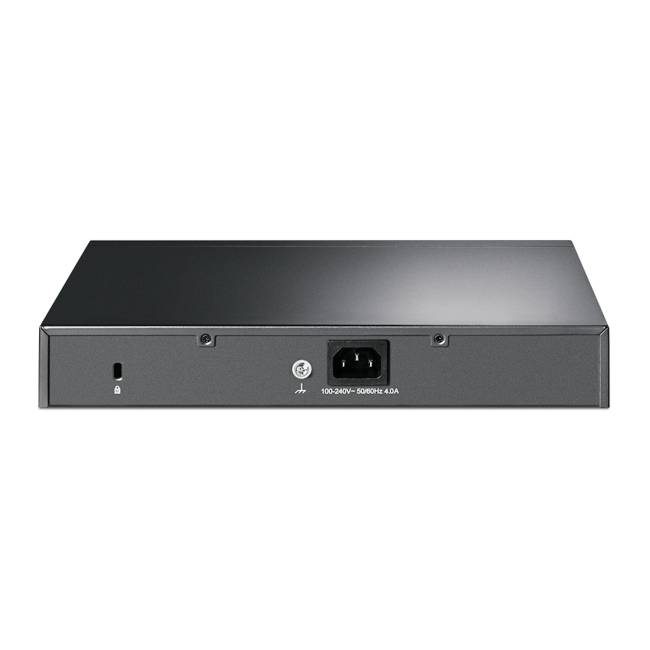

• Power Supply: 100-240 V AC~50/60 Hz
• Dimensions (WxDxH): 294 x 180 x 44 mm
• MAC Address Table: 32 K
• Packet Forwarding Rate: 89.28 Mpps
• Jumbo Frame: 9 KB
• Advanced Functions: Support Omada Hardware (OC200/OC300), Software & Cloud-Based Controller, Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Zero-Touch Provisioning (ZTP)
• Quality of Service (QoS): 8 priority queues, 802.1p CoS/DSCP priority, Queue scheduling, Bandwidth Control, Smoother Performance, Action for Flows
• L2 and L2+ Features: Link Aggregation, Spanning Tree Protocol, Loopback Detection, Flow Control, Mirroring
• L2 Multicast: IGMP Snooping, IGMP Authentication, MLD Snooping, MVR, Multicast Filtering: 256 profiles and 16 entries per profile
• L3 Features: 16 IPv4/IPv6 Interfaces, Static Routing, Static ARP, Proxy ARP, Gratuitous ARP, DHCP Server, DHCP Relay, DHCP L2 Relay
• VLAN: VLAN Group, 802.1Q Tagged VLAN, MAC VLAN: 10 Entries, Protocol VLAN: Protocol, Template 16, Protocol VLAN 16, Private VLAN, GVRP, VLAN VPN (QinQ), Voice VLAN
• Security: IP-MAC-Port Binding, IPv6-MAC-Port Binding, DoS Defend, Static/Dynamic Port Security, Broadcast/Multicast/Unicast Storm Control, 802.1X, AAA (including TACACS+), Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure CLI, management with SSHv1/SSHv2, IP/Port/MAC based access control
• Management: Web-based GUI, CLI through the console port, telnet, SNMP v1/v2c/v3, SDM Template, DHCP/BOOTP Client, 802.1ab LLDP/LLDP-MED, DHCP AutoInstall, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, Password Recovery, SNTP, System Log
• Operating Temperature: 0-50?C (32-122?F)
• Storage Temperature: -40-70?C (-40-158?F)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing
• Package Contents: TL-SX3206HPP Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet
