Product Description:

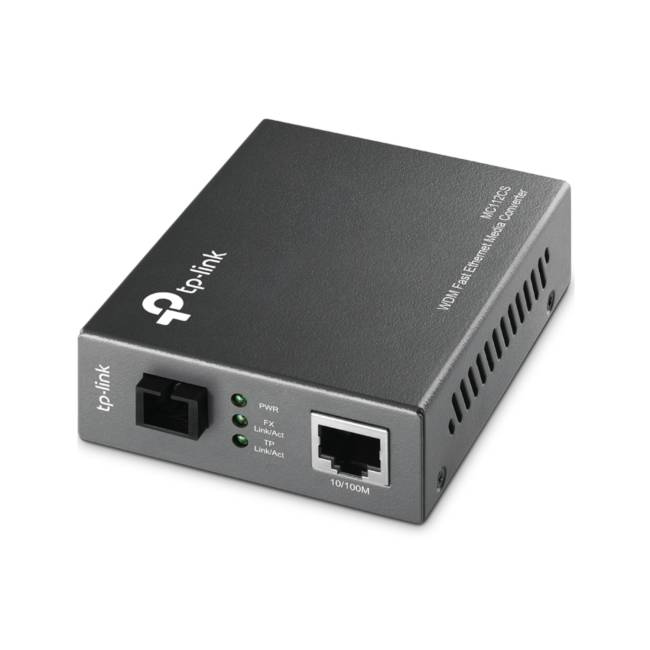

The TP-LINK MC112CS is a single-mode WDM (Wavelength Division Multiplexing) media converter designed to extend your network over long distances using fiber optic cabling. This device is capable of converting 100BASE-FX fiber signals to 100BASE-TX copper Ethernet signals, providing a flexible solution for linking networks across vast distances up to 20 kilometers.
The use of WDM technology allows for both transmitting and receiving data on a single fiber strand, which is ideal for environments where fiber infrastructure is limited. It supports both half and full-duplex modes on the fiber port, making it a versatile choice for various network setups.
Specifications:
- Type: Single-Mode WDM Media Converter
- Enclosure Type: External
- Ports: 1 x 100M SC Fiber Port (Single-mode), 1 x 100M RJ45 Port (Auto MDI/MDIX)
- Standards and Protocols: IEEE 802.3i (10BASE-T Ethernet), IEEE 802.3u (100BASE-TX/100BASE-FX Fast Ethernet)
- WDM Details: TX Wavelength: 1310 nm, RX Wavelength: 1550 nm
- 10BASE-T: UTP category 3, 4, 5 cables (maximum 100m), EIA/TIA-568 100 Ohms STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cables (maximum 100m), EIA/TIA-568 100 Ohms STP (maximum 100m)
- 100BASE-FX: Single-mode Fiber
- Transmission Distance: Up to 20 km over single-mode fiber
- LED Indicators: PWR (Power), Link/Act (Link/Activity)
- Dimensions: 94.5 mm (W) x 73.0 mm (D) x 27.0 mm (H)
- Power Supply: External Power Adapter
- Operating Temperature: 0?C to 40?C (32?F to 104?F)
- Storage Temperature: -40?C to 70?C (-40?F to 158?F)
- Operating Humidity: 10% to 90% non-condensing
- Storage Humidity: 5% to 90% non-condensing
- Package Type: Retail
- Package Weight: 0.4800 kg
| Name | Value |
|---|---|
| Manufacturer Part Number | MC112CS |
| Manufacturer | TP-Link |
| Product Type | WDM Media Converter |
| Product Barcode | 6935364030421 |
