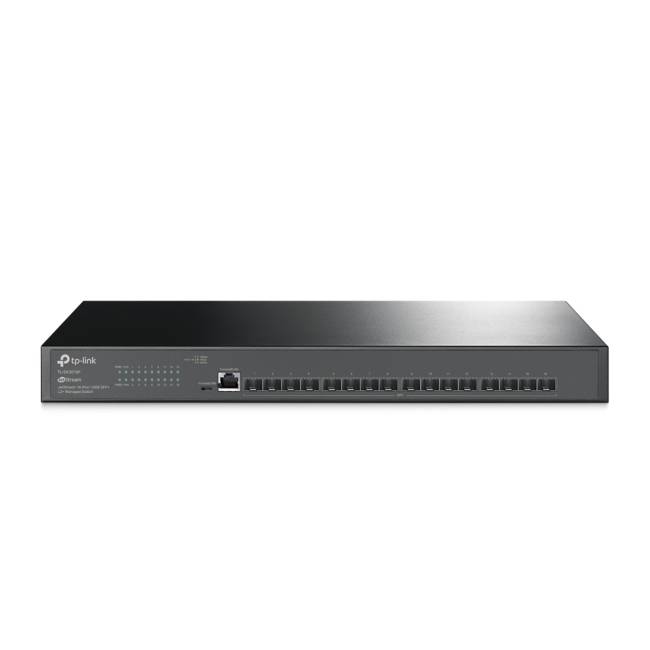

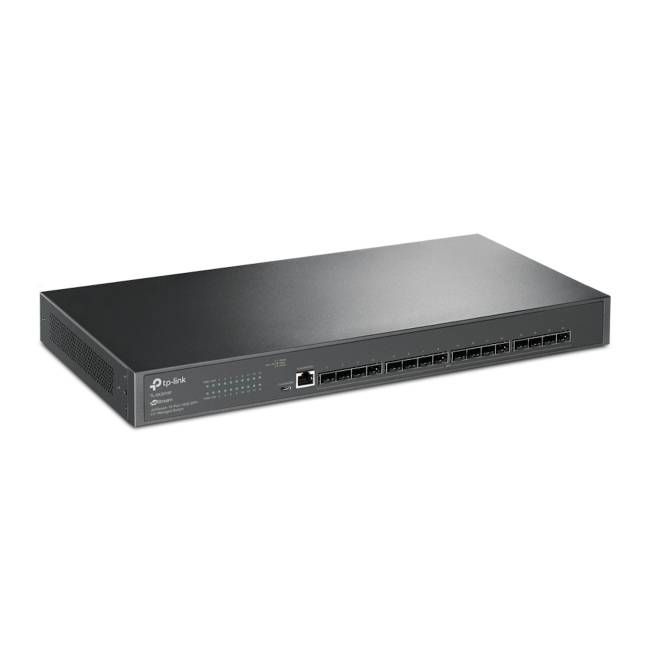

TP-LINK JetStream 16-Port 10GE SFP+ L2+ Managed Switch - (TL-SX3016F) TP-LINKTL-SX3016F

The TP-LINK (TL-SX3016F) JetStream 16-Port 10GE SFP+ L2+ Managed Switch, is a high-performance network switch designed for enterprise-level environments requiring robust and scalable networking solutions.

With 16 high-speed 10GE SFP+ ports, this switch offers a substantial switching capacity of 320 Gbps and a packet forwarding rate of 238.08 Mpps, ensuring fast and reliable data transfer. The switch is fanless, which makes it perfect for noise-sensitive environments while maintaining efficient cooling.

Specifications:

• Rackmountable: Yes
• Managed: Yes
• Number of Ports: 16
• Interface(s): 16 x 10GE SFP+ Slots, 1 x RJ45 Console Port, 1 x Micro-USB Console Port
• Switching Capacity: 320 Gbps
• Power Supply: 100-240 V AC~50/60 Hz
• Max Power Consumption: 32.74 W
• Dimensions (WxDxH): 440 x 220 x 44 mm
• MAC Address Table: 32 K
• Packet Forwarding Rate: 238.08 Mpps
• Jumbo Frame: 9 KB
• Advanced Functions: Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, Zero-Touch Provisioning (ZTP)
• Omada Controller Support: Hardware (OC200/OC300), Software, Cloud-Based
• Quality of Service (QoS): Priority Queues: 8, Queue Scheduling, Bandwidth Control
• L2 Features: Link Aggregation, Spanning Tree Protocol, Loopback Detection, Flow Control, Mirroring
• L2 Multicast: IGMP Snooping, IGMP Authentication, MLD Snooping, MVR, Multicast Filtering
• L3 Features: 16 IPv4/IPv6 Interfaces, Static Routing, DHCP Server, DHCP Relay
• VLAN: 802.1Q Tagged VLAN, MAC VLAN: 30 Entries Protocol, VLAN: 16 Templates, Private VLAN, Voice VLAN
• Access Control: Time-based ACL, MAC ACL, IP ACL, Combined ACL, IPv6 ACL
• Security: IP-MAC-Port Binding, DoS Defend, Port Security, Storm Control, 802.1X Authentication, AAA (TACACS+), Port Isolation, Secure

• Management: Web-based GUI, SNMP v1/v2c/v3, SDM Template, DHCP/BOOTP Client, LLDP/LLDP-MED, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, Password Recovery, System Log, CLI through Console Port, Telnet
• Operating Temperature: 0-45 �C
• Storage Temperature: -40-70 �C
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing
• Package Contents: Switch, 2 x Power Cords, Quick Installation Guide, Rackmount Kit, Rubber Feet
