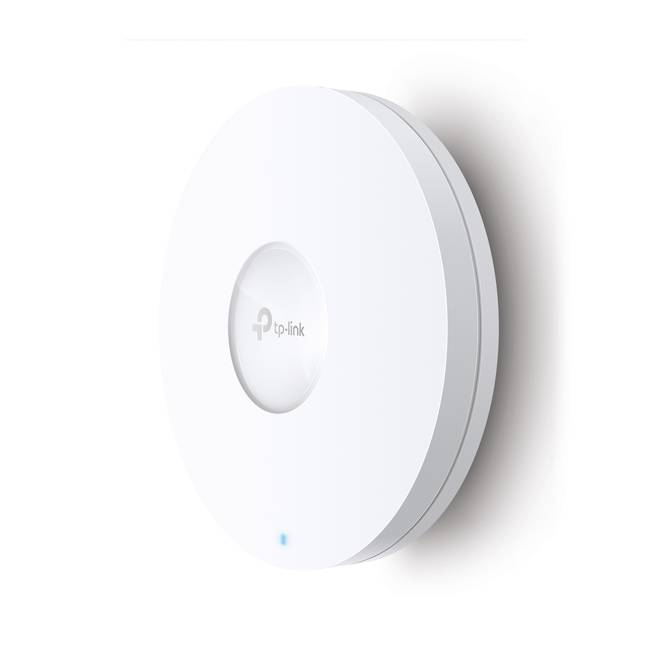

TP-LINK AX1800 Dual Band Wireless Ceiling Mount Wi-Fi 6 Access Point - (EAP610 NEW) TP-LINKEAP610 NEW

The TP-LINK EAP610 (NEW) AX1800, is a Wi-Fi 6 Dual Band Wireless Ceiling Mount Access Point, designed to provide fast, stable, and efficient wireless networking in business environments or large homes. Supporting the latest Wi-Fi 6 standard, it offers a maximum wireless speed of 1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, enabling high-performance connectivity for multiple devices simultaneously.

It features advanced technologies like OFDMA, MU-MIMO, and Beamforming for enhanced network efficiency, coverage, and speed. With PoE+ support and central management via the Omada platform, it allows for easy installation, configuration, and scaling in environments requiring multiple access points.

Specifications:

• Primary Function: Wireless Access Point
• Bands: Dual Band: 2.4 GHz & 5 GHz
• Wireless Speed:
• 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps
• Wired Speed: 10/100/1000 Mbps

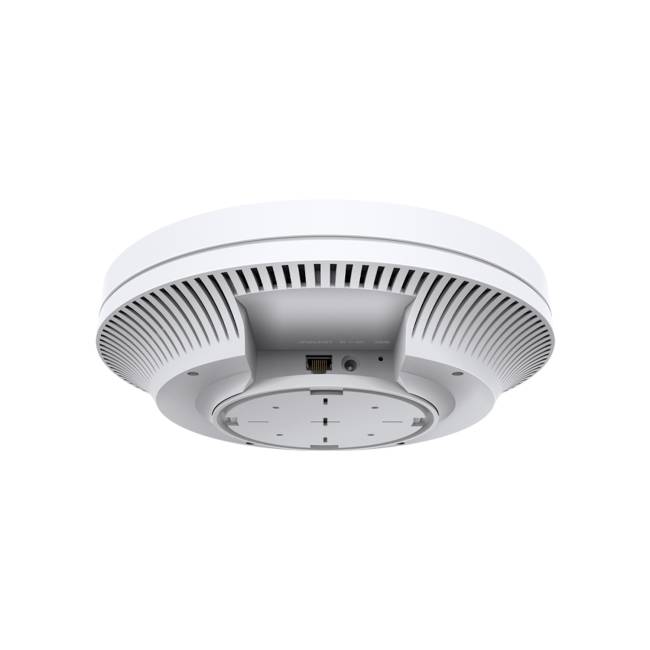

• Interface: 1 x Gigabit Ethernet (RJ-45) (Supports IEEE802.3at PoE)
• Wireless Standards: Supported Protocols: IEEE 802.11ax/ac/n/g/b/a
• Antenna:
• Internal Omni-directional
• 2.4 GHz: 2 x 4 dBi
• 5 GHz: 2 x 5 dBi
• Buttons: Reset Button
• Power Supply:
• PoE: 802.3at PoE (Power over Ethernet)
• DC: 12 V / 1 A
• Power Consumption: PoE: 12.8 W, DC: 10.8 W
• Dimensions: 160 x 160 x 33.6 mm
• Weatherproofing: No (Indoor Use Only)
• Advanced Technologies:
• OFDMA
• 1024-QAM
• Beamforming
• MU-MIMO
• Seamless Roaming
• Airtime Fairness
• Band Steering
• Rate Limit
• Load Balance
• SSID: Up to 16 SSIDs (8 for each band)
• Security: WPA/WPA2/WPA3 (Personal/Enterprise), 802.1X support
• QoS: WMM (Wireless Multimedia)
• Management:
• Centralized Management via Omada Cloud
• Omada App
• Multiple SSIDs
• VLAN Mapping
• Wireless Security:
• Captive Portal Authentication
• Access Control
• MAC Address Filtering
• Rogue AP Detection
• Wireless Client Isolation
• Management:
• Omada App
• SNMP
• SSH
• Web-based Management
• Email Alerts
• LED Control
• System Logging: Local/Remote Syslog
• Advanced Functions:
• Omada Mesh
• Automatic Channel Assignment
• Transmit Power Control
• Wireless Statistics (SSID/AP/Client)
• Operating Environment:
• Operating Temperature: 0-40?C (32-104?F)
• Storage Temperature: -40-70?C (-40-158?F)
• Operating Humidity: 10-90% RH, non-condensing
• Storage Humidity: 5-90% RH, non-condensing
• Package Contents:
• EAP610 Access Point
• Power Adapter
• Ceiling/Wall Mounting Kit
• Installation Guide
• Weight: 0.8000 kg
