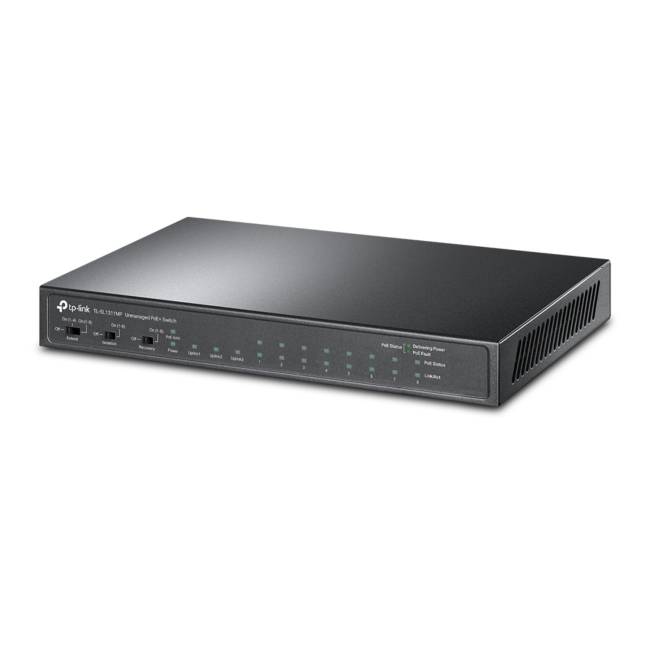

TP-LINK 8-Port Unmanaged Desktop PoE+ Switch - (TL-SL1311MP) TP-LINKTL-SL1311MP

The TP-LINK TL-SL1311MP is an 8-port unmanaged desktop PoE+ switch, designed to deliver power and data over a single Ethernet cable to devices such as IP cameras, VoIP phones and wireless access points. It includes 8 10/100Mbps PoE+ ports, 2 gigabit RJ45 ports and 1 gigabit SFP port for flexible network expansion.

The switch supports IEEE 802.3af/at standards, providing a power supply budget of 124W. With advanced features like extend mode, isolation mode, and PoE auto recovery, it ensures optimal network performance and security in small to medium-sized business environments.

Specifications:

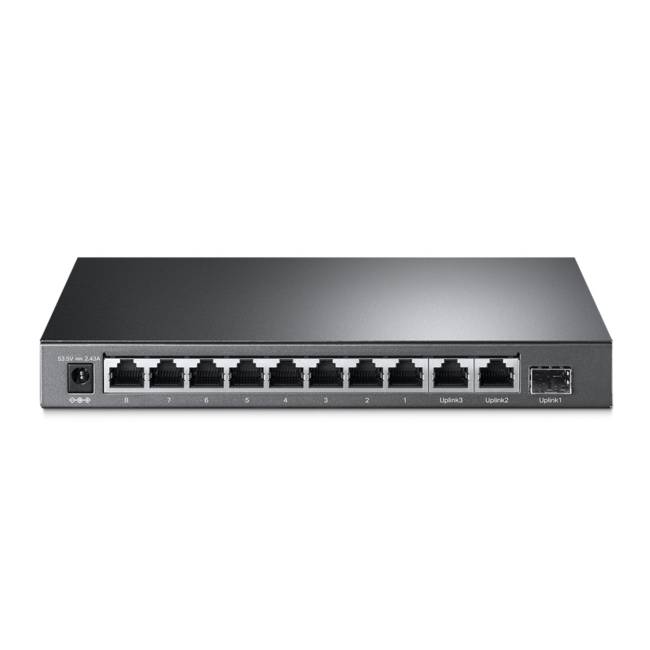

• Ports and Interfaces:
• 8 x 10/100 Mbps 802.3af/at PoE+ Ports
• 2 x Gigabit RJ45 Ports
• 1 x Gigabit SFP Port
• AUTO Negotiation
• AUTO MDI/MDIX
• Power over Ethernet (PoE)
• Standard: IEEE 802.3af/at compliant
• PoE Ports: Ports 1-8
• PoE Power Budget: 124 W
• Switching Capacity: 7.6 Gbps
• Packet Forwarding Rate: 5.6544 Mpps
• Mac Address Table: 2K
• Jumbo Frame: 16 KB
• Advanced Functions:
• Compatible with IEEE 802.3af/at Compliant PDs
• Extend Mode Button
• Isolation Mode Button
• PoE Auto Recovery Button
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
• Security: Physical Security Lock
• Environmental Specifications:
• Operating Temperature: 0-40 ?C (32-104 ?F)
• Storage Temperature: -40-70 ?C (-40-158 ?F)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing
• Dimensions: 209 x 126 x 26 mm
• Power Supply: External Power Adapter (Output: 53.5VDC / 2.43A)
• Package Contents:
• TL-SL1311MP Switch
• Power Adapter
• Installation Guide
• Package Type: Retail
• Package Weight: 1.5940 kg
