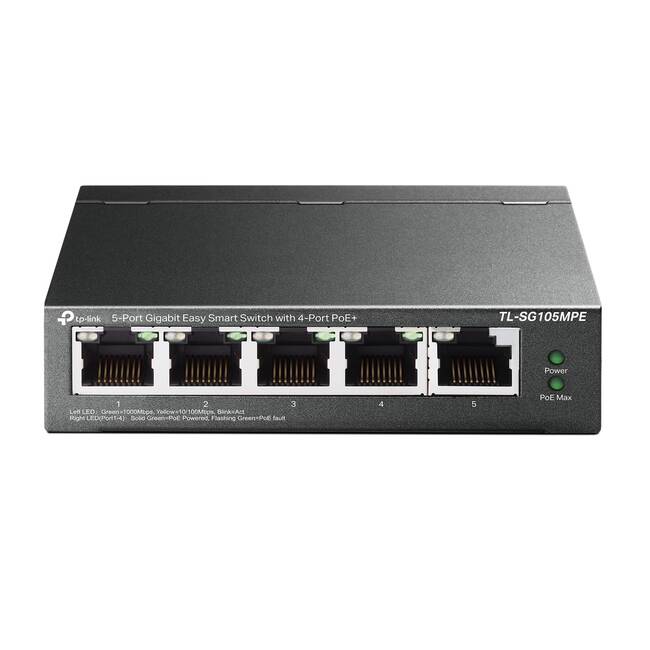

TP-LINK 5-Port Gigabit Easy Smart Switch with 4-Port PoE+, Steel Case - (TL-SG105MPE) TP-LINKTL-SG105MPE

The TP-LINK TL-SG105MPE is a 5-Port Gigabit Easy Smart Switch with 4-Port PoE+ capability, featuring a steel case for durability. It offers a balance between simplicity and advanced features, making it suitable for small businesses or home offices that require basic management capabilities along with Power over Ethernet (PoE) functionality.

The TL-SG105MPE offers essential managed features such as VLAN support, Quality of Service (QoS), and PoE capabilities, making it a versatile and cost-effective solution for small-scale network deployments requiring power and traffic management.

Specifications:

• Rackmountable: No
• Managed: Smart
• Number of Ports: 5
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• Interface(s): 5 x 10/100/1000Mbps RJ45 Ports (AUTO Negotiation/AUTO MDI/MDIX)

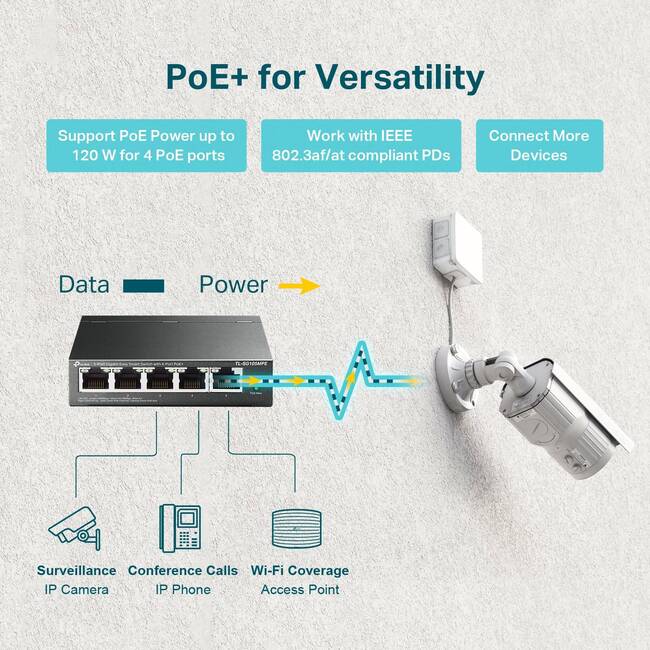

• PoE Ports (RJ45): Standard: 802.3af/at compliant, Ports 1-4
• PoE Power Budget: 120 W
• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
• Switching Capacity: 10 Gbps
• Power Supply: External Power Adapter (Output: 53.5 VDC / 2.43 A)
• Dimensions: (WxDxH) 99.8 x 98 x 25 mm
• Transfer Method: Store-And-Forward
• MAC Address Table: 2 K entries
• Packet Forwarding Rate: 7.44 Mpps
• Jumbo Frame: 16 KB
• Quality of Service:
• Support Port-Based/802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control
• Layer Features:
• IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• PoE Auto Recovery
• Extend Mode
• VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN
• Management: Web-based GUI, Easy Smart Configuration Utility
• Operating Temperature: 0?C40?C (32?F104?F)
• Storage Temperature: -40?C70?C (-40?F158?F)
• Operating Humidity: 10%~90%RH non-condensing
• Storage Humidity: 5%~95%RH non-condensing
• Package Contents: TL-SG105MPE Switch, Power Adapter, Installation Guide, Rubber Feet
• Package Type: Retail
• Package Weight: 1.1000 kg
