TP-Link 10 / 100Mbps WDM Media Converter with 1-Port PoE TP-LINKTL-FC111PB-20

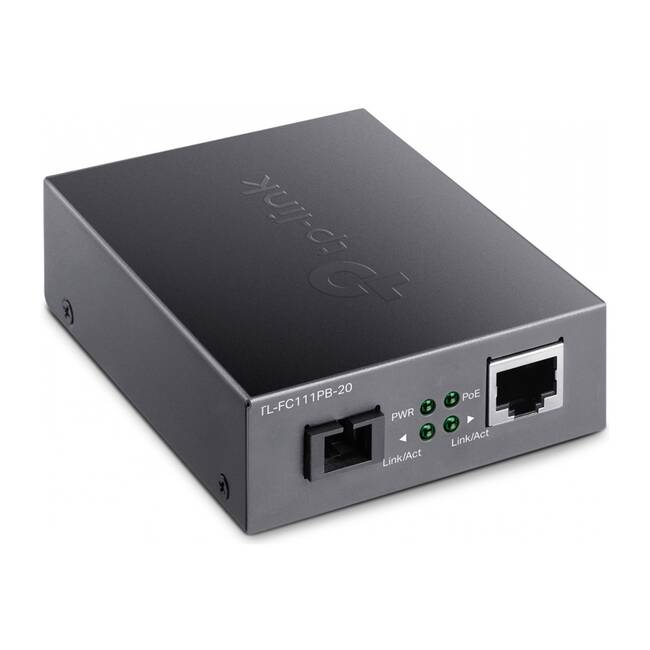

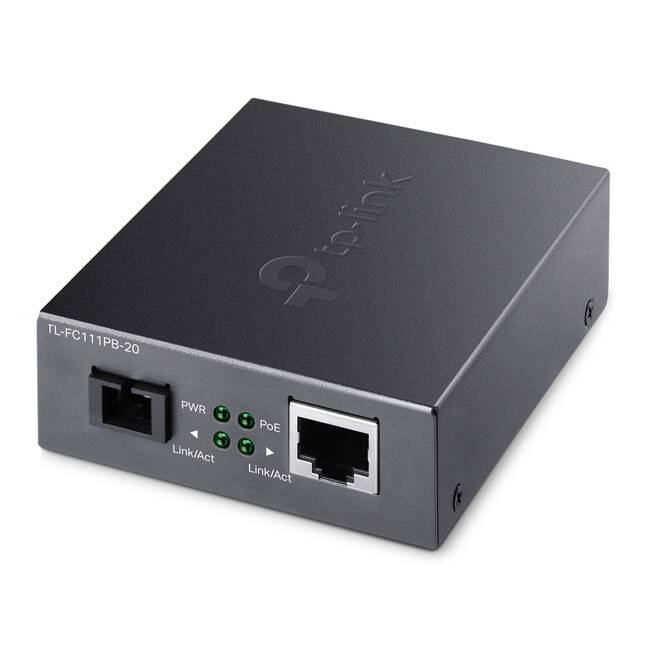

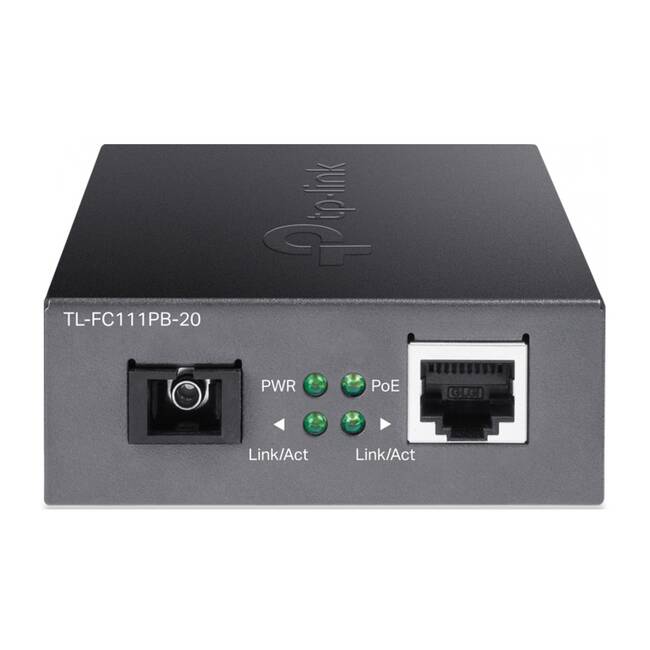

The TL-FC111PB-20 is a high-performance media converter offering 10/100 Mbps connectivity with 802.3af PoE output. It is equipped with 1x 10/100 Mbps PoE RJ45 port and 1x 100 Mbps SC fiber port, enabling seamless conversion between electrical and optical signals.

With a remarkable fiber transmission distance of up to 20 km and 802.3af PoE output capability, this media converter is specifically designed to cater to the demands of flexible long-range surveillance deployments using optical fibers. It serves as an economical solution for extending the distance of an existing network.

The TL-FC111PB-20 utilizes innovative WDM (wavelength division multiplexing) technology to achieve efficient data transmission and reception over distances of up to 20 km using just a single mode fiber. This cutting-edge technology significantly reduces cable deployment costs for customers.

To ensure proper functionality, the media converter transmits data at a wavelength of 1310 nm and receives data at 1550 nm on the optical fiber. Therefore, any terminal device used in conjunction with the TL-FC111PB-20 should send data at a wavelength of 1550 nm while receiving data at a wavelength of 1310 nm.

The TL-FC111PB-20 can be effectively paired with TP-Link`s TL-FC111A-20 media converter, providing users with additional options for network expansion and connectivity.

In addition to its core functions, this media converter can be employed as a standalone device without requiring a rack. Alternatively, users can utilize TP-Link`s TL-FC1420 rack for auto MDI/MDI-X in the TX port, enabling seamless negotiation of duplex mode for enhanced data transmission efficiency.
