Product Description:
The Plugable USB-C Power Meter Tester (USBC-VAMETER3) is a compact and versatile tool designed to monitor USB-C power and charging connections up to 240W.
The Plugable USB-C Power Meter Tester (USBC-VAMETER3) is a valuable tool for anyone who needs to monitor USB-C power and charging connections. Its compact size, bidirectional operation, and data pass-through capabilities make it a convenient and reliable solution for various applications.
Functionality:
- Real-time Monitoring: Measures voltage and amperage, and visualizes the directional flow of electrical current in real-time.
- High Power Support: Supports USB Power Delivery (USB-PD) R3.1 Extended Power Range (EPR), handling up to 240W.
- Bidirectional Operation: Can be connected in either orientation, accommodating the full range of USB EPR voltage (5 to 48V, 4.5V-50V, 50mA-6.5A operating range).
- Data Pass-Through: Allows USB data pass-through (1.1 through 3.1 Gen 2), USB-C Alt Mode video, and USB-C charging without interference.

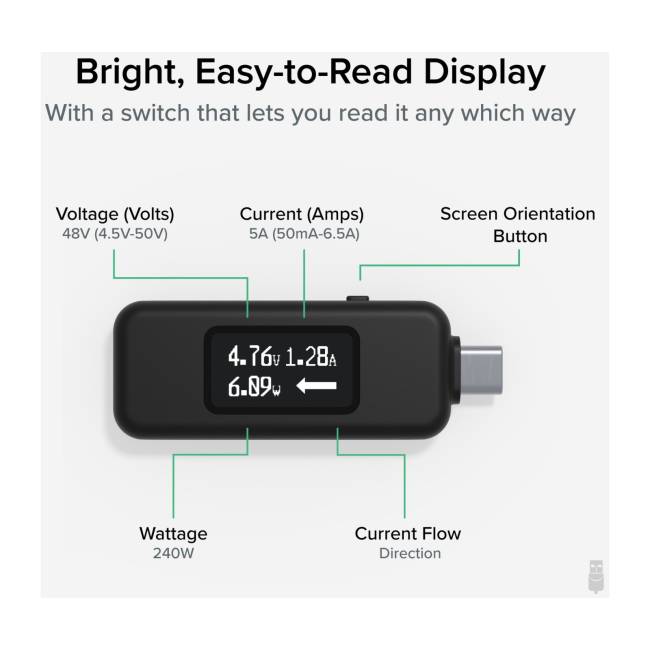

- OLED Display: Features a bright and easy-to-read OLED display with an orientation button to flip the screen 180 degrees.
Applications:
- Charging Monitoring: Monitor charging information between a USB-C host (laptop, tablet, phone) and a charger.
- Docking Station Monitoring: Monitor charging information between a USB-C host and a docking station.
- Power Draw Measurement: Measure the power draw of USB-C bus-powered accessories (external hard drives, flash drives).
- USB-C Port Compliance Testing: Test for USB-C port spec compliance (VBUS hot condition, voltage drop under load).
Design and Portability:
- Compact Size: About the size of a USB flash drive, making it highly portable.
- Durable Construction: Strengthened USB-C connections for sturdiness.
- Case Compatibility: Fits most phones and tablets without removing protective cases.
Key Features:
- Driverless operation.
- Transparent interposer design.
- Supports 4.5-50V, 50mA-6.5A operating range.
- Supports all USB data (1.1 through 3.1 Gen 2).
Important Notes:
- This meter is not a replacement for professional USB-C test equipment.
- Not compatible with Intel Thunderbolt 3 devices.
| Name | Value |
|---|---|
| Manufacturer Part Number | USBC-VAMETER3 |
| Manufacturer | Plugable |
| Product Type | USB C Power Meter Tester |
| Supports | 4.5-50V, 50mA-6.5A operating range and USB data (1.1 through 3.1 Gen 2). |
| Important notes | Not compatible with Intel Thunderbolt 3 devices. |

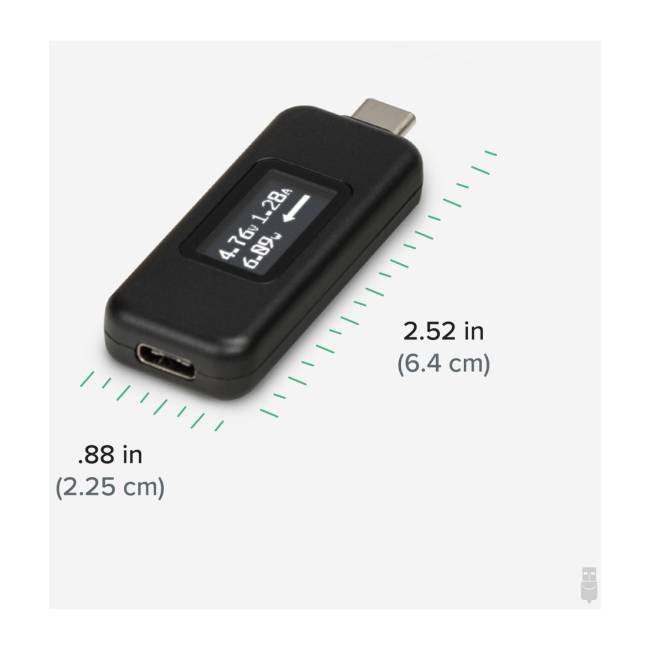

| Dimensions | 2.5 Inch x 0.88Inch (6.4cm x 2.25cm) |
| Product Barcode | 0819927012788 |
| Cable Length | N/A |
| Connectivity | USB-C |
| Item Length | 6.4cm |
| Item Width | 2.25cm |
| Number Of Ports | 2 |
