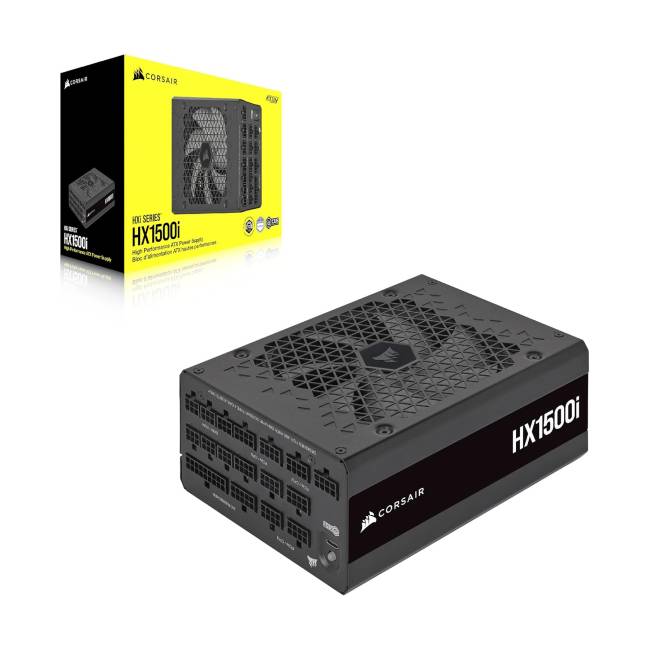

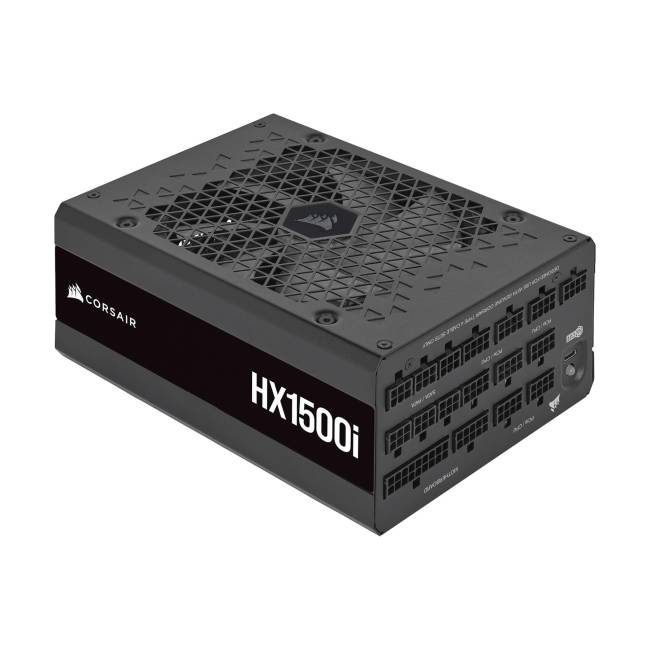

Corsair HX1500i 1500W Platinum ATX Fully Modular PSU Black CorsairCP-9020261-UK

The Corsair HX1500i V2 is a top-tier 1500W ATX 3.0 certified digital power supply, engineered to deliver unparalleled 80 PLUS Platinum efficiency with remarkably quiet operation.

Featuring a fluid dynamic bearing fan, a fully modular cable system, and seamless integration with Corsair`s powerful iCUE software, the HX1500i provides the immense power and intelligent control required for the most demanding, high-performance PC builds.

• 1500W Power Output:
  Provides extreme and stable power for the most power-hungry components, including multi-GPU setups and heavily overclocked systems.


• ATX 3.0 Certified:
  Fully compliant with the latest ATX 3.0 standard, ensuring exceptional reliability and performance for modern systems, with full support for PCIe Gen 5 and robust handling of transient power spikes.


• 80 PLUS Platinum Certified:
  Delivers up to 92% efficiency, resulting in exceptionally low power consumption, minimal heat generation, and ultra-quiet operation.


• Ultra-Low Noise Operation: Designed for near-silent performance across a wide range of loads, ensuring a quiet computing experience.


• 140mm Fluid Dynamic Bearing (FDB) Fan: Provides exceptionally quiet and long-lasting fan performance with optimized airflow for efficient cooling.


• Zero RPM Fan Mode:
  The fan completely shuts off at low to medium loads, ensuring virtually silent operation during less intensive tasks.


• Fully Modular Cabling:
  Connect only the cables your system needs, simplifying cable management, maximizing airflow within the chassis, and contributing to a clean and organized build.


• Powerful CORSAIR iCUE Software:
  Enables comprehensive real-time monitoring of power settings (voltage, current, temperature), customizable fan curve creation for optimal cooling and noise levels, and on-the-fly toggling between single and multi-rail overcurrent protection (OCP).


• Fully Digital Platform:
  Incorporates Resonant LLC topology and DC-to-DC conversion for exceptionally clean and consistent power delivery, minimizing voltage fluctuations and reducing coil whine and other noise.


• 100% Japanese 105^oC Electrolytic Capacitors:
  Premium-grade internal components ensure unwavering power delivery, exceptional electrical performance, and superior long-term reliability, even under the most demanding conditions.


• Modern Standby Compatible: Supports modern sleep states for extremely fast wake-from-sleep times and improved low-load efficiency (requires compatible motherboard and CPU).


• Dedicated PCIe 5.0 12VHPWR Connector:
  Includes a dedicated 16-pin (12+4 pin) PCIe 5.0 connector designed to provide the necessary power for the latest and most power-hungry graphics cards.


• Software-Selectable Single/Multi Rail Mode:
  Offers ultimate flexibility, allowing users to switch between a single powerful +12V rail for maximum power delivery or multiple +12V rails for enhanced component protection via iCUE.


• USB Type C to 10-1pin iCUE Interface:
  Provides seamless communication and control of the PSU`s digital features through Corsair`s intuitive iCUE software.

Technical Specifications:

• Form Factor: ATX
• Series: Corsair HXi
• Wattage: 1500 W
• Modular: Fully Modular
• Efficiency: 80 PLUS Platinum
• Fan Type: 140mm Fluid Dynamic Bearing (FDB) Fan with Zero RPM Mode
• Noise: Ultra-Low Noise
• AC Input: 100Va.c.-240Va.c
• Dimensions: 200 x 150 x 86 mm
• Weight: 2.4 kg

Connectors:

• 1 x ATX Cable 24-pin (24)
• 2 x EPS/ATX12V Cable 8-pin (4+4)
• 7 x PCIe Cable 8-pin (6+2)
• 1 x PCIe Cable 16pin (12+4)
• 8 x SATA Cable (Straight)
• 8 x PATA Cable (4-pin)
• 1 x USB (Type C) to 10-1pin

The Corsair HX1500i V2 power supply represents the pinnacle of PSU technology, delivering immense power, exceptional efficiency, ultra-quiet operation, and intelligent digital control through iCUE. Its ATX 3.0 and PCIe 5.0 compatibility ensures it`s ready for the most cutting-edge hardware, making it the ultimate power solution for extreme PC enthusiasts and professionals.

Package Contents:

• HXi Series ATX Power Supply (HX1500i V2)
• Power cord
• Mounting screws
• Cable ties
